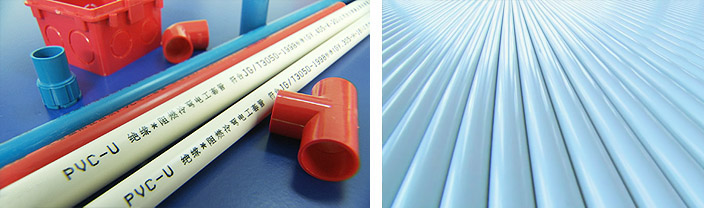

We take PVC resin as the main raw material, add special additives, and produce wire pipes and fittings, named PVC electrician drive pipe, by extrusion and injection molding processing. In building electric installation engineering, it's used to protect the wire or cable wiring pipelines, it allows the wire or cable pass through or replace. Mainly used for electrical and communications cable drive pipe, the products implement industry standards JG. 3050-1998.
1, Compressive Strength:
Pipe wall thickness is above 1.6 mm, it's able to withstand more than 750N pressure, so it can be set in the open installation and concrete, without damage.
2, Resistance to Impact and Heat
It will not burst in the process of concrete pouring, and it won't become soft affected by hot in the construction process.
3, moisture, acid and alkali resistant:
Don't rust. Each side uses PVC adhesive by the regulation to prevent water from seeping into the pipe, better moisture resistance, and suitable for use in corrosive environment.
4, Hot and Fire Resistance:
because of its self-extinguishing (self-extinguishing within 30 seconds), the flame don't spread along the pipe.
5, Convenient Construction:
It's portable to use the pipe cutter to truncate pipes. When inserting the corresponding special spring into wires, people can bend the required angle at random at room temperature, and can quickly and easily connect the required pipe shape during the construction.
6, High Insulation, Prevent Leakage
Excellent insulation property, it can withstand the high voltage without breakdown to effectively prevent the risk of leakage and electric shock.
